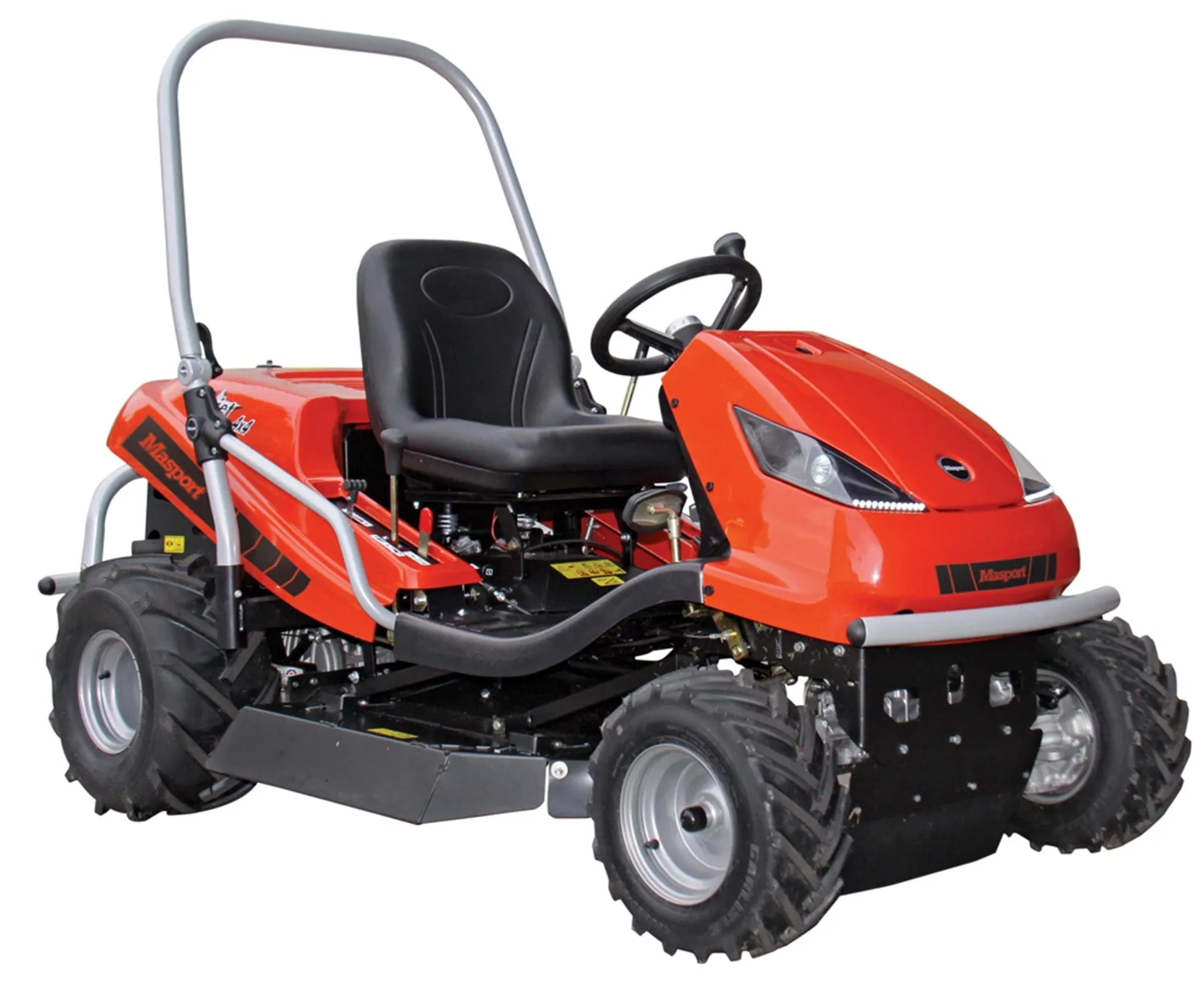

Mulching 4WD Ride-on. Briggs & Stratton Vanguard 23HP V-twin engine, 92cm (36") cutting deck
Due to their low centre of gravity and superior weight distribution in comparison to a conventional ride-on mower, the Crossjet mowers offer greater stability and traction that allows the mower to climb hills, slopes and rough ground when slippery or dry. The Crossjets can tackle high grass, brush, blackberry, gorse, thistles, and most overgrown and out of control vegetation. The 92cm (36") cutting deck does not directly deflect cuttings from the side therefore keeping paths, driveways, building, fences and gardens free from cut debris.
- Features a genuine USA manufactured Vanguard Briggs & Stratton cast iron sleeve engine
- 36" (92cm) heavy duty steel brushcutter deck is designed to cut and mulch grass so it decomposes quickly
- The heavy duty solid steel blade carrier runs two swing back blades, these are made from hardened and tempered steel
- These Crossjets are able to mow through high grass as well as thick vegetation, gorse, brambles and generally overgrown areas
- All the operational controls are ergonomically placed so everything is conveniently within a hand or foot touch away
- Refined steering system which is easy to turn and resistance free, the steering ball allows the operator to turn quickly and precisely with one hand when required - improving reaction time and control
- Fan assisted hydrostatic transmission cooler - dissipates heat, lowering the oils operating temperature, thus reducing maintenance costs and extending transmission life
Features
Mulching Capable
Naturally recycles the grass by recutting it and feeding it back into your lawn.
Cruise Control
To maintain a consistent blowing speed
Headlights
For improved visibility and safety
Parking Brake
Locks brake for safe park up or when transporting
Hour Meter
Keep an eye on operator hours for servicing purposes
Bumper
Sturdy front bumper for added protection
Rollbar
For added safety
4WD
Improves traction on slopes, in the wet and when conditions are difficult
Diff Lock
Locks out the differentials for even better traction
Specifications
Engine Make
Briggs & Stratton
Engine Model
Vanguard
Displacement
627cc
Fuel Tank Capacity
19L
Engine Capacity
23.0HP
Number of Cylinders
2 Cylinders
Oil Filter Make
Briggs & Stratton
Battery Voltage (volts)
12V 32 Ah
Cutting Width
920mm (36")
Cutting Height Range
50 - 110mm
Cutting System
2 swingback blades
Blade Engagement
Electromagnetic
Hourly Cutting Performance
Up to 6500m2/h
Transmission
Front - Kanzaki KXH 10, Rear - Hydrostatic Tuff Torq K664 wi
Drive System
V-Belt
Forward Speed
0-8.8km/h
Reverse Speed
0-7.9km/h
Deck Type
Brushcutter
Steering System
Rack & pinion
Seat Type
Comfort seat with arm rests
Deck Lift
Manual
Deck Fabrication
Heavy Duty Steel
Wheel Base Size
1560mm
Front Tyres Size
16" V Shaped
Rear Tyres Size
20" V Shaped
Accessories
Optional Tow Hitch
Weight
346.0kg
Product Dimensions (W x D x H)
1050mm x 2310mm x 1510 mm
