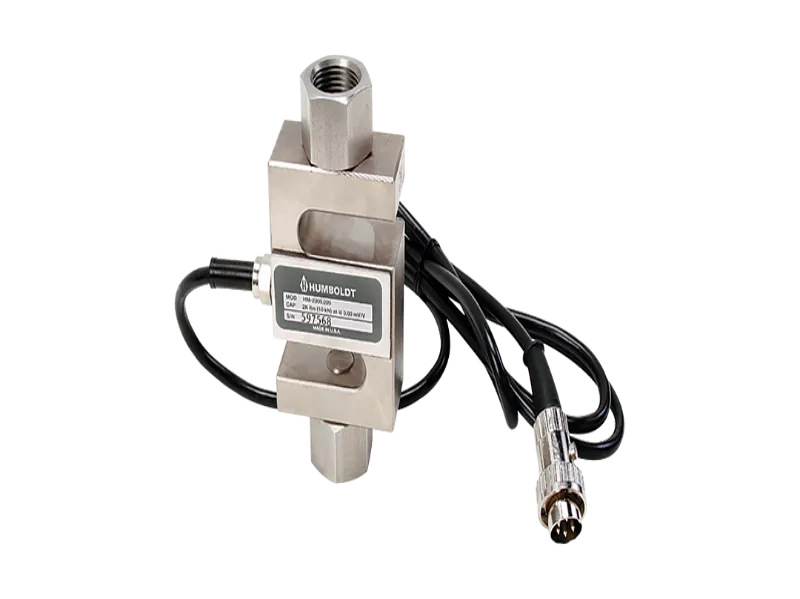

Load Cell, S-Type, 10,000lbf (50kN)
Performance Specifications
| Excitation voltage: | 10 VDC, max.15 VDC |
| Rated output: | 3.0 mv/V minimum |
| Non-linearity: | 0.03% full scale Output |
| Hysteresis: | 0.02% FSO |
| Non-repeatability: | 0.01% FSO |
| Creep (30 minutes): | 0.03% FSO |
| Zero balance: | ±1.0% FSO |
| Bridge resistance: | |
| Input: | 350 ohms, nominal |
| Output: | 350 ohms, ±3.5 ohms |
| Overload: | |
| Safe static: | 150% of capacity |
| Ultimate: | 175% of capacity |
| Temperature: | |
| Compensated range: | 0-150°F |
| Effect on output: | 0.0006% FSO/°F |
| Effect on zero: | 0.0008% FSO/°F |
| Finish: | Nickel-plated or stainless steel |
| Seal: | Waterproof |
