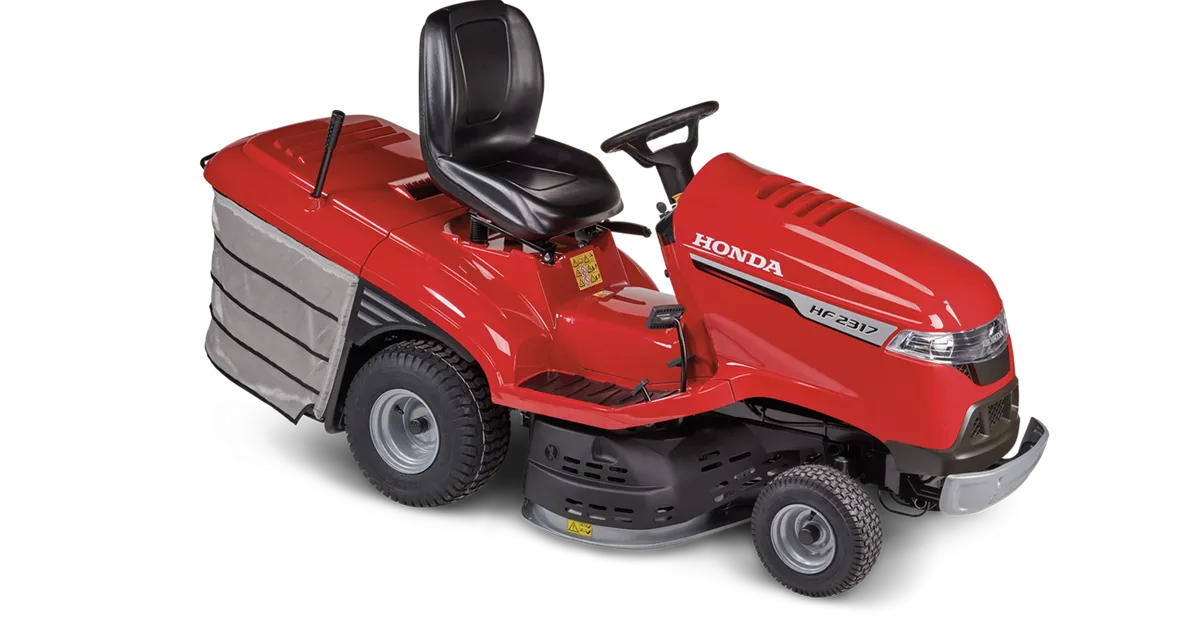

Equipped with a new Euro 5 compliant engine, this product is one of the latest generation Honda lawn tractor models. Several new features have also been developed for the new lawn tractor range with enhanced convenience and comfort in mind.
ENGINE:
Powered by Honda’s smooth and powerful GCV530 OHV V-twin motor. This engine offers great fuel consumption with low emissions, low vibration, and long operational life span. Electric key start ignition provides a smooth, vibration free, start and a lengthy service life.
DRIVE:
A foot operated Hydrostatic transmission means both of the operators hands are on the steering wheel rather than one on a hand controller allowing for more control and more safety for the driver.
SAFETY:
The HF2317 has an integrated electromagnetic blade clutch, where the engagement and braking are combined in one system. This will ensure a greater braking performance for added safety, as well as avoiding extra wear on specific parts of the machine.
Product Overview:
- Cutter Deck Size: 92cm
- Garden Size: Very Large. Suitable for lawns up to 5,000m² (1.25 acres)
- Transmission: Variable Hydrostatic Drive - This lawnmower's speed is adjusted by pedal control
- Mulching: Optional - Mulching is only available on this model if you purchase an additional mulching kit from a Honda Dealer
- Grass Bag Capacity: 280L
- Grass Bag Dumping: Manual - Dispose of grass clippings by lifting a lever
-
2 YEAR DOMESTIC WARRANTY
Blade Brake Clutch | Electromagnetic |
Optiflow | Yes |
Catcher Bag Dumping | Manual |
Cutting Positions | 7 |
Noise Level (dB (A)) | 100 |
Mulching | Optional |
Rear Deflector | Optional |
Tow Hitch | Optional |
Length (mm) | 2440 |
Width (mm) | 970 |
Height (mm) | 1230 |
Dry Weight (kg) | 219 |
Cutter Deck Size (cm) | 92 |
Number of Blades | 2 |
Synchro or Asynchro | Asynchro |
Height Adjustment (mm) | 29-80 |
Catcher Capacity (Litres) | 280 |
Lawn Size | Suitable for lawns up to 5,000m² (1.25 acres) |
Engine | 4-stroke OHV V-twin |
Displacement (cc) | 530 |
Engine Model | GCV530 |
Rated Power (kW/rpm) | 9.4/2800 |
Fuel Tank Capacity | 5.4l |
Engine Oil Capacity | 1.3l |
Transmission | Variable: Hydrostatic |
Driving Speed (km/h) | Progressive 0 to 8.2 |
