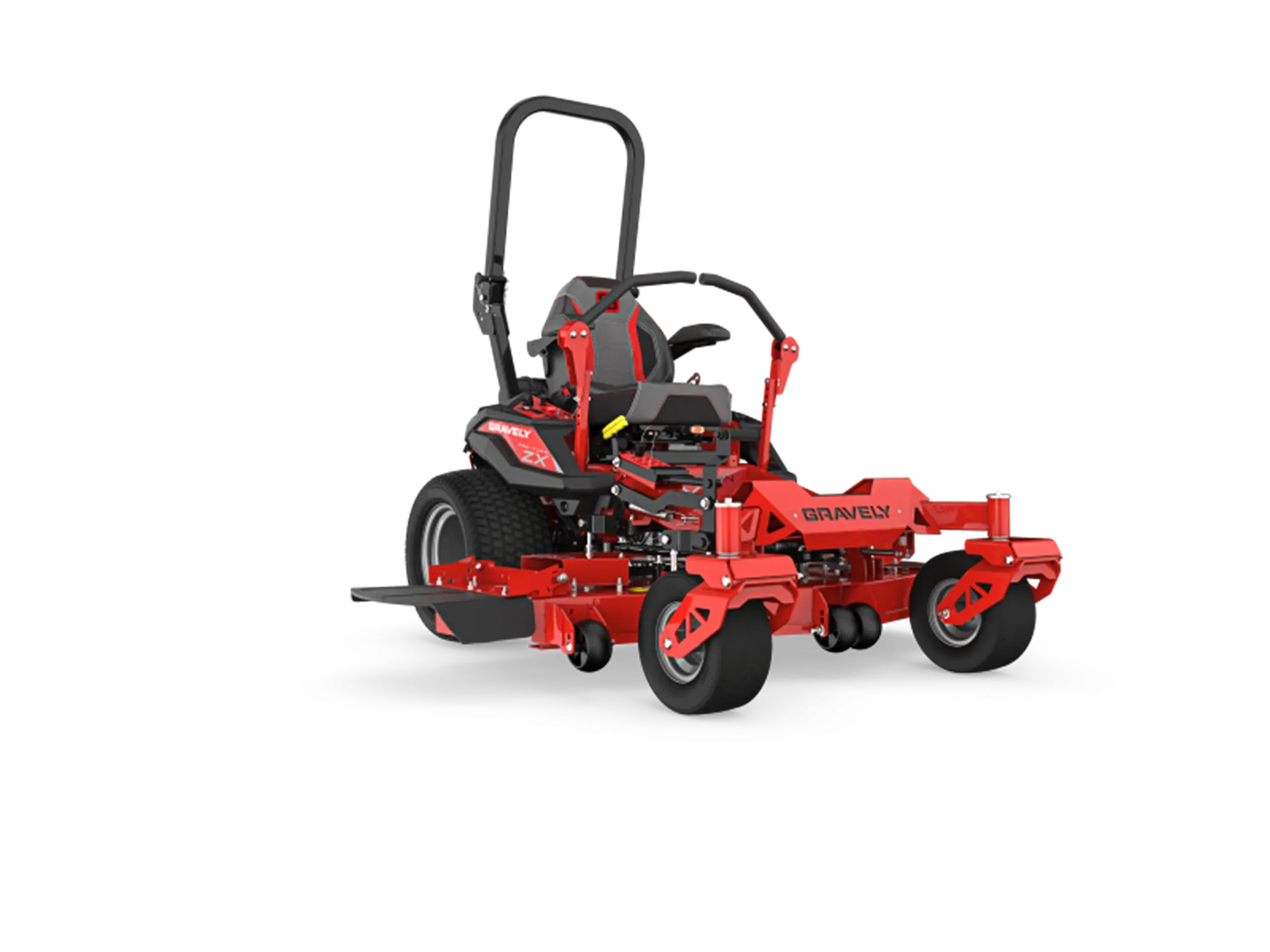

48" deck, 22 HP Kawasaki® FX 691 V-Twin engine, Hydro-Gear® ZT-3200 transaxles
- The Pro-Turn® ZX 48 provides solid construction which will tackle the toughest commercial jobs and leave a beautifully manicured lawn in its wake. This mower was built to not just exceed expectations but to redefine them.
- 2-Bucket Bagger, Bagger Mount Kit, Trailer Hitch Kit, Mulching Kit, Laser Edge Mower Blades Kits
- The automotive-style tubular frame is is constructed of enclosed rectangular tubing and is fully welded for superior durability.
- ZT-3200® Transaxles are commercial grade, heavy duty, can handle high speeds and are serviceable for a longer life span.
- The X-FACTOR® 3 deck is a completely redesigned deck with better grass dispersion and improved cut quality. Its new look is constructed from 7-gauge steel to deliver years of solid performance.
- Suspension forks absorb impact from tought terrain enabling a smoother ride
- 15 cutting heights - A foot operated deck lift system makes cutting height adjustments a breeze. Adjust the deck in 13 mm increments by dropping the magnetic pin into the clearly visible height adjustment slots ranging from 38 mm to 127 mm.
- ROPS comes standard for increased operator safety
- Machine Warranty - 4 Years or 750 Hours Limited
Specifications
Engine Make
Kawasaki®
Engine Model
Kawasaki® FX 691 V-Twin
Displacement
726 CC
Fuel Tank Capacity
18.9 L
Engine Capacity
22 HP
Cutting Width
48"
Cutting Height Range
38.1 MM - 127 MM
Cutting Positions Spec
15
Drive System
Hydro-Gear® ZT-3200
Forward Speed
0 - 13.7 KM/H
Reverse Speed
0 - 6.4 KM/H
Seat Type
High back comfort seat with suspension and padded arm rests
Front Axle Type
Suspension, Greaseable Caster Fork Tubes
Deck Fabrication
Fabricated X-Factor® 3
Deck Engagement
Electric Clutch Ogura® GT 1.5
Spindle Housing
Forged Aluminum
Number of Spindles
3
Spindle Housing Material Spec
Forged Aluminum
Spindle Shaft Spec
Steel
Spindle Bearings Spec
Ball Bearing
Front Wheels
Smooth Pneumatic
Rear Wheels
Turf
Front Tyres Size
13 IN X 6. 5 IN - 6 IN
Rear Tyres Size
22 IN X 10 IN - 12 IN
Weight
419.5kg
Product Dimensions (W x H x L)
1572 MM (with Chute) X 1829 MM (with ROPS extended) X 2007 M
