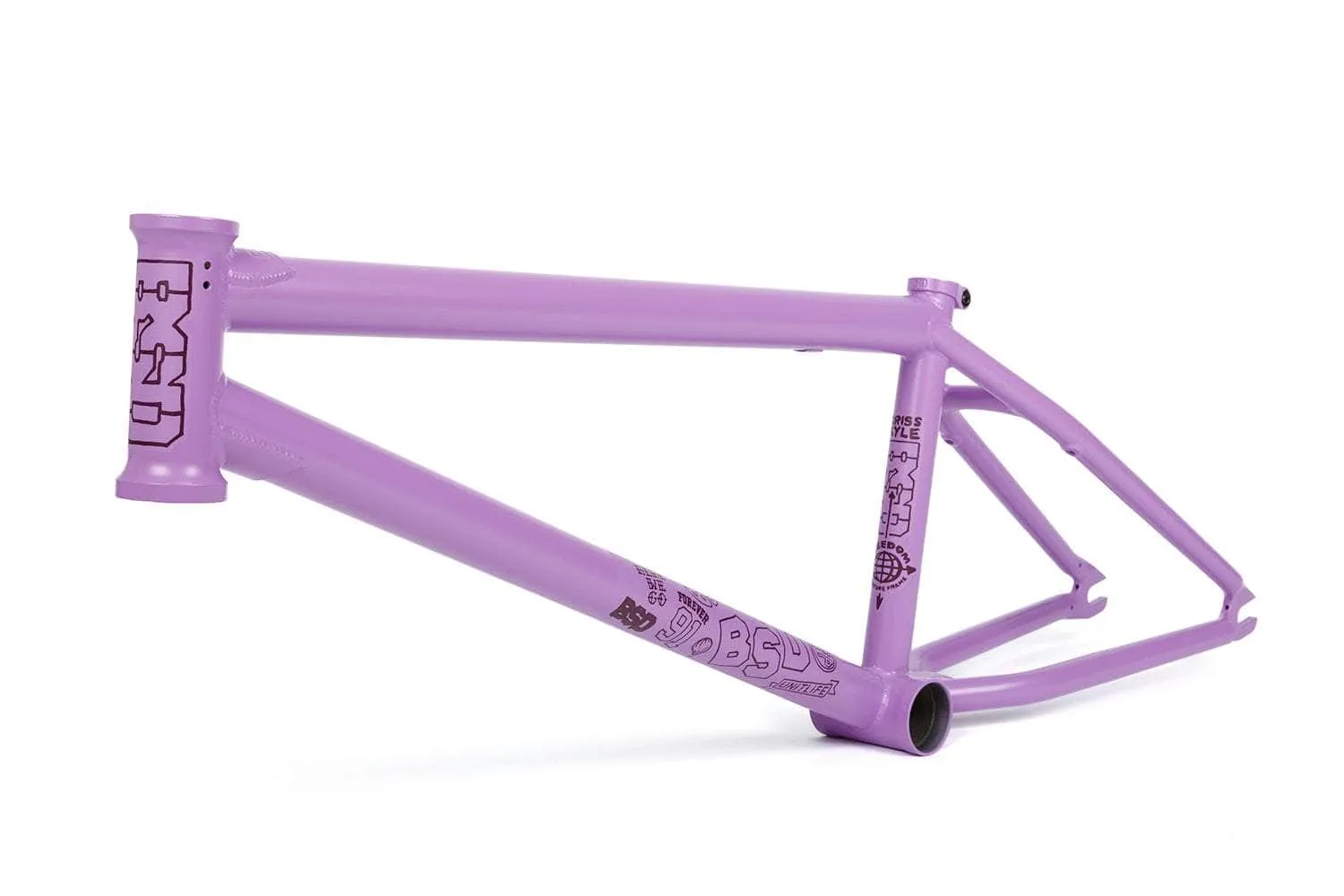

Kriss Kyle is the type of rider who likes to ride everything, bowls, street, dirt, the lot. His signature Freedom frame is designed to perform well on all terrain, this frame combines the stability of a low 11.5" BB, the responsiveness of a 75° headangle and the versatility of a short rear end. To create a stiffer rear triangle we've utilized an invest cast wishbone and invest cast seatstay bridge, great for sideways landings!!
| Toptube lengths | 20.2 / 20.5 / 20.8 / 21.1 / 21.5 |
| Headtube angle | 75° |
| Headtube length | 117mm |
| Seattube angle | 69.5° |
| Rear end length | 13.2″ – 13.625″ - note the 21.5″ frame has a longer rear (13.4″ – 13.825″) |
| BB Height | 11.5" |
| Standover height | 9" |
| Weight | 5lbs |
| Brake mounts | removable - brake kit available separately |
| Tubing | Sanko Japanese seamless 4130 CrMo / triple butted |
| Headtube | Heat treated 4130 CrMo / CNC / Offset thickness |
| Bottom Bracket | Heat treated 4130 CrMo / CNC machined |
| Chainstay Wishbone | Heat treated 4130 CrMo / Invest cast |
| Dropouts | Heat treated 4130 CrMo / Invest cast |
| Seatclamp | Heat treated 4130 CrMo / Invest cast |
| Colours | MILITARY GREEN / SANDSTORM / FLAT BLACK |
